Solidworks And FEA Software design .
SIEMENS PLC HMI SCADA.
Induction Heating System
IGBT or SCR .
7×24 Hours After Service
The pipe bending machine is suitable for oil, natural gas, chemical, electric power, construction and other industries.
The bending machine principle adopt induction heating and hydraulic cylinder pushing.
The material of the pipe: carbon steel, alloy steel, stainless steel, etc.
It is used for hot bending of various round steel pipe or square steel pipes, angle iron, channel steel and I-beam.
Steel pipe diameter range.
Steel pipe wall thickness range.
The bending radius is generally 2.5D--6D. Any large radius can be bend according to customer needs. Also can produce steel pipes with multiple curvature radius.
The bending angle is generally 0-90° or 0-180°

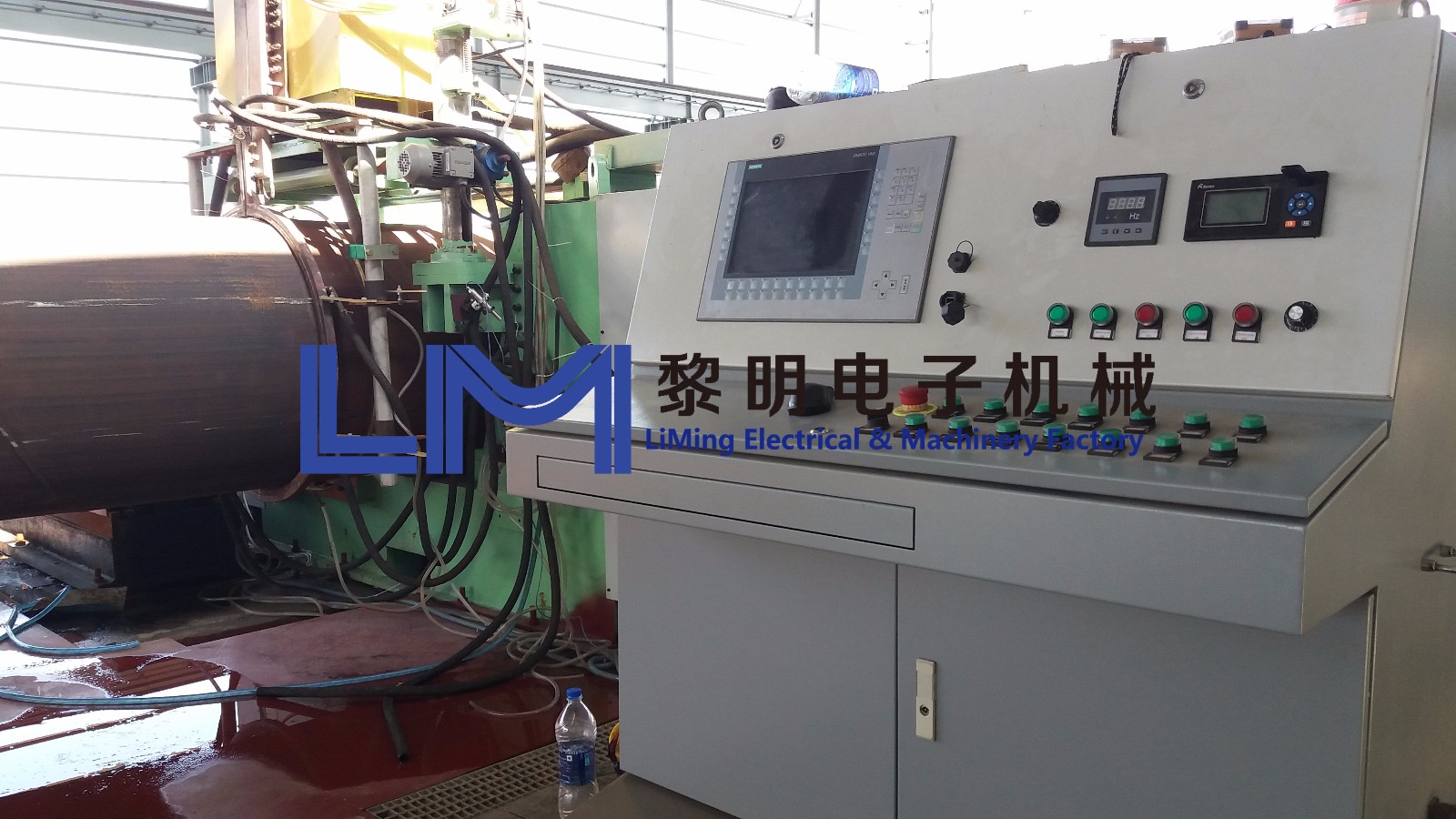

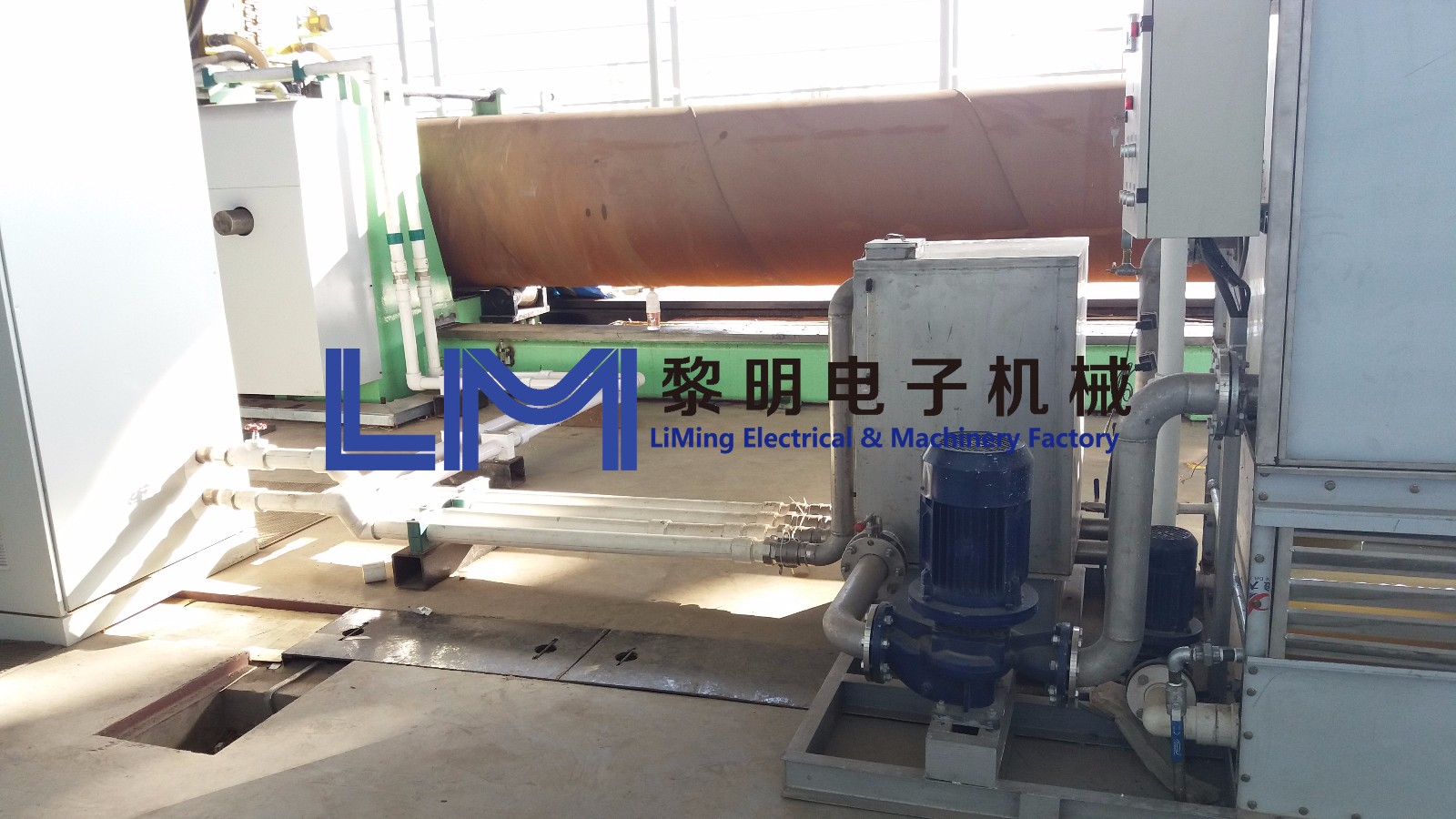

Induction heating power supply part including induction heating power supply, cooling water circulation system, operation cabinet (touch screen, PLC control system).
Hydraulic system: oil tank, pump station, hydraulic cylinder, oil pipe.

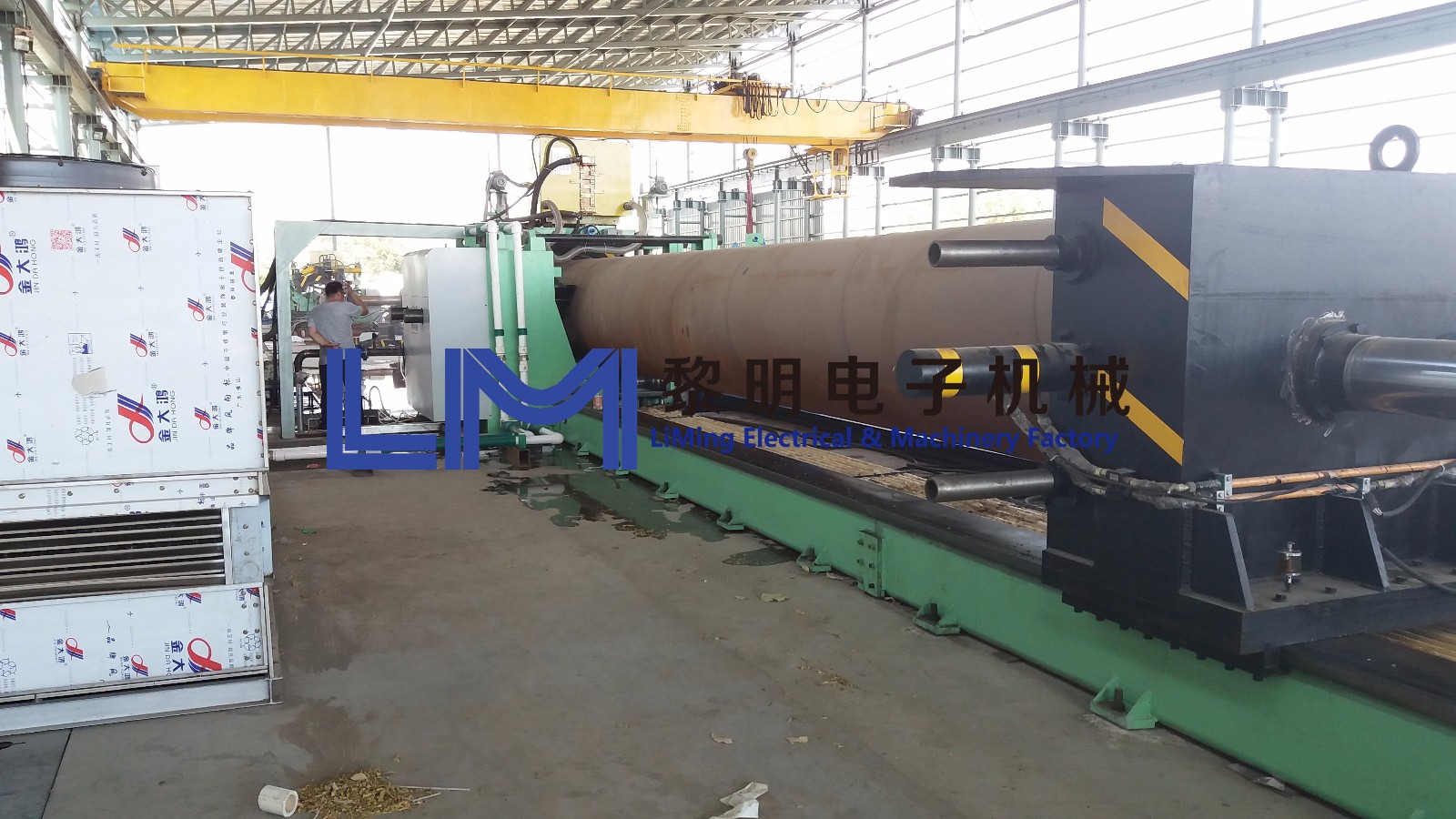

Mechanical body: hydraulic cylinder support , push plate, Chassis, platform, transformer support, slide rail, rocker spindle, clamp, etc.
1. Production Range :OD60---2000mm(2---80 Inches)
4. Angle:0--180 degree
5. Material:Carbon steel ,Alloy steel ,Stainless steel ect.
