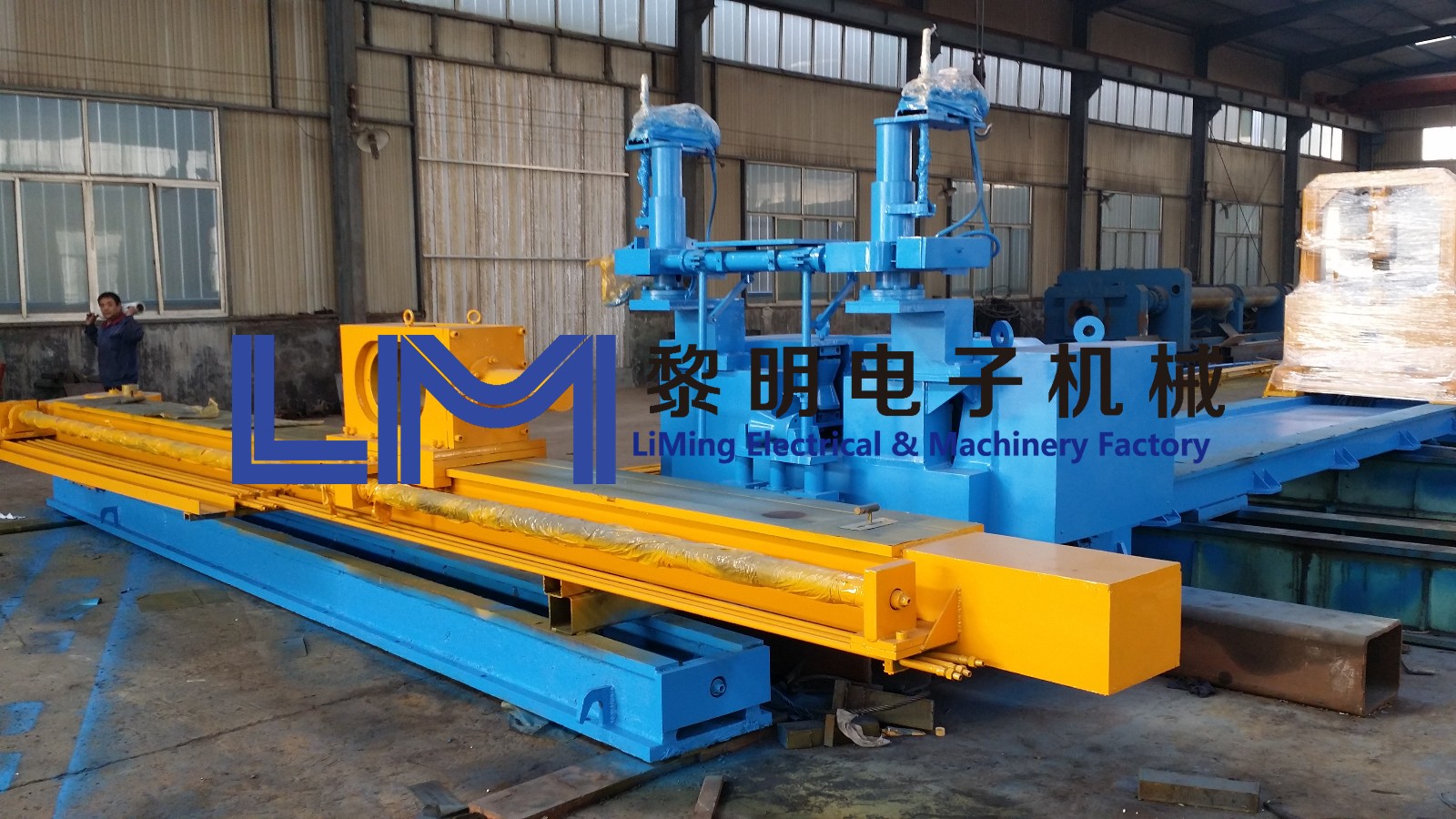

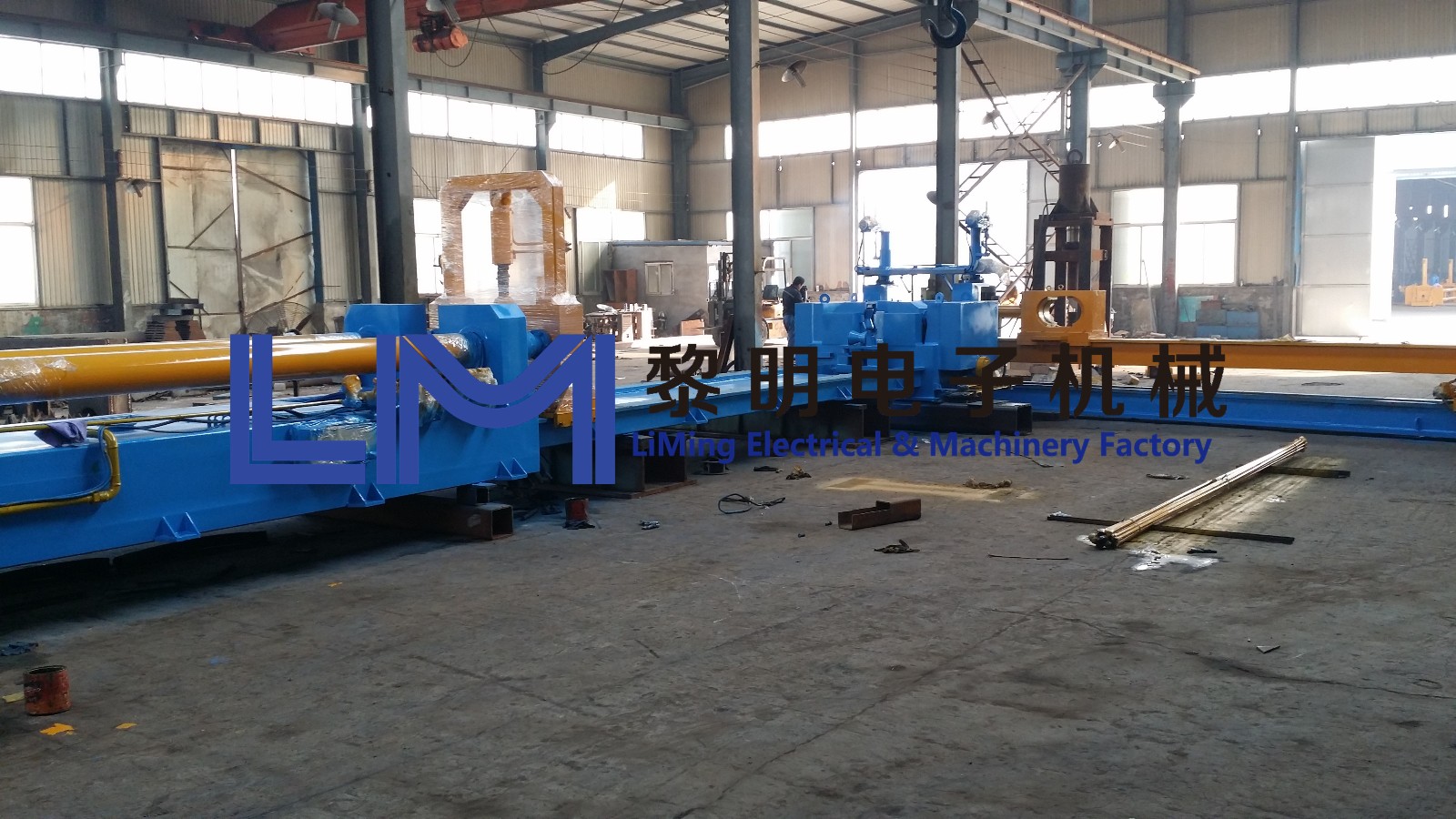

The induction pipe bending machine uses electric induction heating to bend the workpiece under the condition of local heating. At present, it is widely used in pipeline prefabrication in power, petroleum, chemical, marine, nuclear industry and other engineering fields. There are many types of pipe benders, and induction pipe benders are CNC hydraulic pipe benders.
What are the advantages of induction bending pipes?
1) The pipe bending machine uses this process to avoid the uneven wall thickness of the elbow caused by the convex edge of the pipe wall being stretched and thinned, and the concave edge of the pipe wall being compressed and thickened when the traditional pipe bending process is formed.
2) 180 elbows with a small radius (R≈D) and the thin wall (t/D≈0.015) with uniform wall thickness can be produced, which cannot be achieved by other pipe bending processes.
3) If the design of various process parameters is reasonable, the process can ensure that the wall thickness of each part of the tube bend is always kept constant during the forming process, that is, it is always equal to the wall thickness of the straight tube before deformation.
4) With this process, bends with the same diameter of 45°, 90°, 180°, and other bending angles can be produced on the same horn mandrel at one time, and the production efficiency is high.
We are reliable pipe bender machine, hot pipe bending machine, hot bending pipe machine supplier in China.
Parameters of pipe bender machine
The pipe bending machine is suitable for oil, natural gas, chemical, electric power, construction, and other industries.
The bending machine principle adopts induction heating and hydraulic cylinder pushing.
The material of the pipe: carbon steel, alloy steel, stainless steel, etc.
It is used for hot bending of various round steel pipe or square steel pipes, angle iron, channel steel, and I-beam.
Steel pipe diameter range.
Steel pipe wall thickness range.
The bending radius is generally 2.5D--6D. Any large radius can be bend according to customer needs. Also can produce steel pipes with multiple curvature radius.
The bending angle is generally 0-90° or 0-180°
Induction heating power supply part including induction heating power supply, cooling water circulation system, operation cabinet (touch screen, PLC control system).
